OMNITRONIC PAS MK3 Band Set

OMNITRONIC PAS MK3 Band Set
This product is currently not available.
5,599.00€ *

Prices incl. VAT plus shipping costs

Delivery time 2 Workdays

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-20000746
  • 4026397682380

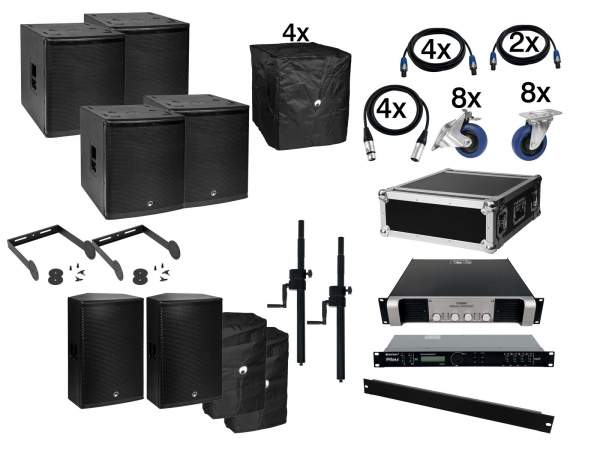

4x subwoofer, 2x 2-way top, power amp, flightcase, controller, 10x connection cables and... more
Product information "OMNITRONIC PAS MK3 Band Set"


4x subwoofer, 2x 2-way top, power amp, flightcase, controller, 10x connection cables and accessories

OMNITRONIC PAS-215 MK3 2-Way Top

Passive speaker with 15" woofer, 1" driver and 400 W RMS

  • Rugged full-range top speaker, qualified for suspension
  • Trapezoidal, multi-functional multiplex cabinet with scratch-resistant lacquer surface
  • 2-way bass-reflex system with 38 cm woofer (8 cm voice coil)
  • 2.5 cm compression driver with ferrite magnet (3.8 cm voice coil with polymer diaphragm)
  • Parallel Speaker connections
  • Optimized for combination with PAS subwoofers
  • Dual flange with 0° and 5° tilt angle enables flexible positioning
  • M8 threaded inserts for suspended installation
  • Protective grille and recessed aluminum handlebars
  • Applications: standing, on a subwoofer or speaker stand, suspended

OMNITRONIC PAS-181 MK3 Subwoofer

Passive 18" bassreflex subwoofer with 900 W RMS, 8 ohms

  • Rugged Pro PA subwoofer
  • 45 cm (18") bass speaker
  • Parallel Speaker connectors
  • Rugged multiplex cabinet
  • Scratch-resistant lacquer surface
  • Metal handlebars
  • Impact-resistant steel grille with acoustic foam
  • Flange for mounting top speakers
  • Transport aid: Wheels optional

OMNITRONIC Distance Tube Subwoofer/Satellite with Crank

Variable distance tube (M20 thread), height adjustable via crank 80-110 cm

  • Connecting tube for satellite systems
  • Height adjustable via crank 80-110 cm
  • M20 thread
  • Powder-coated steel version
  • Color: black

PSSO QCA-10000 4-Channel SMPS Amplifier

PA amplifier with SMPS, 4 x 2500 W / 2 ohms, 4 x 2100 W / 4 ohms

  • 4-channel PA amplifier with class I circuitry
  • 4 x 2100 W/4 ohms
  • Low weight and height due to integrated switch mode power supply
  • Reliable power amp with high impulse stability for a wide range of applications (e.g. compact PAs, multi-way PAs, international concerts)
  • Speaker switch-on delay
  • 3 operating modes can be selected (stereo, parallel or bridged)
  • 4 level controls for precise level adjustment
  • Input sensitivity adjustable
  • LED VU meter and LEDs for activated protective circuit (protect), overload (clip), and signal per channel
  • Complete protection set against short-circuit, overheat, clipping, overload, DC voltage and VHF signals
  • Electronically balanced inputs via XLR mounting jacks, with XLR feed-through outputs
  • Speaker outputs via lockable Speaker plugs
  • Rugged steel chassis with aluminum front panel
  • Rack installation with 2 units
  • Neutrik Speakon outputs
  • Air flow from front to rear
  • The device is cooled by 2x temperature-controlled fan
  • (19") 48.3 cm rack installation 2 U

ROADINGER Amplifier Rack PR-2, 4U, 47cm deep

Flightcase for 483 mm devices (19")

  • Profile rails with 4 U mounting facility for 483 mm units (19"), e.g. PA amplifiers, power packs, additional equipment
  • Front and rear rack rails
  • 2 removable covers (double-door version)
  • Max. depth 420 mm (plus 90 mm per cover)
  • High-quality workmanship with plywood multilayered glued, black laminated
  • Aluminum profile frames (30 mm) with rounded edges
  • Three-leg, medium-sized steel ball corners
  • 4 high-quality butterfly locks (w/o locking function)
  • 2 wooden slide rails on the bottom
  • 2 chrome case handles
  • Delivery includes mounting screws
  • Available in different height units (1 U = 44 mm)
  • 4 U

OMNITRONIC DXO-24E Digital Controller

Digital stereo active crossover with 2 inputs and 4 outputs, incl. software

  • Flexible routing configurations for all standard mono and stereo output operating modes
  • 2 analog inputs and 4 analog outputs (XLR)
  • Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
  • Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
  • Up to 30 user presets storable in the device via software
  • Alphanumeric LCD screen with 2 lines of 16 characters each
  • Input sensitivity digitally adjustable
  • Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
  • Mute switch with LED indicator per output
  • 7-band parametric EQ per output
  • Up to 7 ms signal delay adjustable for the outputs
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Switchable phase
  • Lock function for protecting the program settings
  • Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
  • Digital signal processor
  • The device can be connected via USB to the PC in connection with DXO Software
    The firmware can be updated via the PC connection
  • (19") 48.3 cm rack installation 1 U

OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U

U-front panel in different sizes

  • 1 mm steel, black, powder-coated
  • Weight 465-1350 g (depending on the version)
  • 1 U

ROADINGER Swivel Castor RD-100 100mm blue

Swivel castor

  • Housing made of steel, zinc-plated
  • Blue elastic tyre Ø 100 mm, hub width 40 mm
  • Hole pattern 80 x 60 mm, clear span 42 mm
  • Carrying capacity: 200 kg per set (4 castors)

ROADINGER Swivel Castor RD-100B 100mm blue with brake

Lockable swivel castor

  • Double-action brake (wheel and swivel)
  • Housing made of steel, zinc-plated
  • Blue elastic tyre Ø 100 mm, hub width 40 mm
  • Hole pattern 80 x 60 mm, clear span 42 mm
  • Carrying capacity: 200 kg per set (4 castors)

PSSO XLR cable 3pin 1m bk Neutrik

Reliable microphone cable

  • High quality connection for microphones etc.
  • High conductivity
  • Slim and short construction
  • Made in Germany

PSSO Speaker cable Speakon 2x2.5 1.5m bk

High-quality speaker cable

  • With Neutrik plugs from Liechtenstein
  • Cable from German production
  • 2 pole speaker cable
  • With Neutrik Speakon cable plugs
  • Cable cross-section: 2.5 mm²
  • Cable length 1.5 m
  • Cable diameter 8 mm
  • Weight 0.2 kg

PSSO Speaker cable Speakon 2x2.5 10m bk

High-quality speaker cable

  • With Neutrik plugs from Liechtenstein
  • Cable from German production
  • 2 pole speaker cable
  • With Neutrik Speakon cable plugs
  • Cable cross-section: 2.5 mm²
  • Cable length: 10 m
  • Cable diameter: 8 mm
  • Weight: 1 kg

OMNITRONIC PAS-215 MK3 Cover

15" protective cover

  • Suitable for PAS-215 MK3
  • Durable black Oxford nylon fabric

OMNITRONIC PAS-181 MK3 Cover

18" protective cover

  • Suitable for PAS-181 MK3
  • Durable black Oxford nylon fabric


Related links to "OMNITRONIC PAS MK3 Band Set"
Specifications "OMNITRONIC PAS MK3 Band Set"
Weight:282,55 kg
OMNITRONIC PAS-215 MK3 2-Way Top
Rated power:400 W RMS
Program power:800 W
Frequency range:50 - 20000 Hz
Sensitivity:99 dB (1W/1m)
Max. SPL:127 dB
Dispersion angle:90° x 60°
Crossover frequency:3000 Hz
Impedance:8 ohms
Attachment system:Ø 35mm variable tilt
Flying points:4 x M10 thread; 6 x M8 thread
Connections:Input: speakers via 2 x speaker built-in socket (F)
Speakers:1 x compression tweeter highs (1") approx. 2,5 cm with ferrit magnet
Basket material: aluminum
Voice coil compression tweeter highs (1.5") approx. 4 cm
Horn vent (1") approx. 2,5 cm
1 x woofer (15") approx. 38 cm with ferrit magnet
Voice coil lows (3") approx. 8 cm
Type of speaker:Compact cabinet speaker
Material:Birch multiplex
Color:Black, painted
Dimensions:Width: 45 cm
Depth: 69,5 cm
Height: 43,5 cm
Weight:24,20 kg
OMNITRONIC PAS-181 MK3 Subwoofer
Rated power:900 W RMS
Program power:1800 W
Frequency range:38 - 200 Hz
Sensitivity:98 dB (1W/1m)
Max. SPL:130 dB
Impedance:8 ohms
Connections:Input: speakers via 2 x speaker built-in socket (F)
Speakers:1 x woofer (18") approx. 45 cm with ferrit magnet
Basket material: aluminum
Voice coil lows (4") approx. 10 cm
Type of speaker:Subwoofer
Type:Vented
Transport aid:Wheels optional
Material:Birch multiplex
Color:Black, painted
Dimensions:Width: 54 cm
Depth: 68 cm
Height: 63 cm
Weight:42,70 kg
OMNITRONIC Swing Bracket for PAS-215 MK3
Weight:4,41 kg
OMNITRONIC Distance Tube Subwoofer/Satellite with Crank
Maximum carrying capacity:35 kg
Height:Maximum: 110 cm
Minimum: 80 cm
Attachment system:Ø 35mm
Type (general stands):Distance tube
Color:Black
Weight:2,80 kg
PSSO QCA-10000 4-Channel SMPS Amplifier
Power supply:230 V AC, 50 Hz
Power consumption:1150 W 1/8 power
Output power:4 x 2500 W RMS (2 ohms)
4 x 2100 W RMS (4 ohms)
4 x 1300 W RMS (8 ohms)
2 x 5000 W RMS bridged (4 ohms)
2 x 4200 W RMS bridged (8 ohms)
Power connection:Fixed power supply cord with safety plug
Frequency range:20 - 20000 Hz
S/N ratio:>80 dB
THD:<0,05 % at 1 kHz
Cooling:2 x temperature-controlled fan , Air flow from front to rear
Impedance:Input 10 kOhm , unbal.
Input 20 kOhm , bal.
Gain:40,3 dB/ 0,775 V
38 dB/ 1,0 V
35,1 dB/ 1,4 V
Circuitry:Class I
Slew rate:>10 V/µs
Damping factor:>800
Crosstalk:>65 dB
Control elements:Power switch, level control per channel, mode switch (stereo/parallel/bridged), Input sensitivity switch
Controls:Overheat; overload; short-circuit; softstart; DC voltage; VHF
Status LED:Power, level meter, clip, protect
Connections:Input: line via 4 x 3-pin XLR (F) mounting version
Output: line via 4 x 3-pin XLR (M) mounting version
Output: speakers via 4 x 4-pol SpeakON mounting version (F)
Input sensitivity:0,775 V; 1,0 V; 1,4 V , switchable; 26 dB; 32 dB; 38 dB , switchable
Use of brands:Built with NEUTRIK connector
Housing design:(19") 48.3 cm rack installation 2 U
Dimensions:Width: 48,3 cm
Depth: 44,5 cm
Height: 8,9 cm
Weight:13,90 kg
ROADINGER Amplifier Rack PR-2, 4U, 47cm deep
Maximum load:25 kg
Aluminum profile frames:30 mm
Case handles:2 pc/pcs
Lock:Butterfly lock: 4 pc/pcs
Transport aid:Wooden slide rails on the bottom
Material:Plywood glued, 7 mm
Color:Black, laminated
Front panel width:(19") approx. 48 cm
Mounting height:Approx. 18 cm (4 U)
Mounting depth:420 mm
Housing design:4 U
Dimensions:Width: 54,5 cm
Depth: 64 cm
Height: 22 cm
Weight:9,40 kg
OMNITRONIC DXO-24E Digital Controller
Power supply:100-240 V AC, 50/60 Hz
6 V DC 800 mA
Power connection:Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided)
Frequency range:10 - 30000 Hz
THD:<0,005 % at 1 kHz
DSP:Digital signal processor
Crossover frequency:20-20000 Hz
Impedance:Input 10 kOhm
Output 50 Ohm
Gain:Output: -50 dB to +12 dB
Filter:Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct
Delay:0 - 5 ms
Dynamic range:Input: 114 dB
Output: 110 dB
Sample rate:67 kHz
Connections:Input: line via 2 x 3-pin XLR
Output: line via 4 x 3-pin XLR
Max. level:Input: +22 dBu
Output: +9 dBu
USB port:Typ B
PC connect:DXO Software via USB, firmware can be updated
Housing design:(19") 48.3 cm rack installation 1 U
Dimensions:Width: 48,3 cm
Depth: 12,8 cm
Height: 4,45 cm
Weight:1,60 kg
OMNITRONIC Front Panel Z-19U-shaped, steel,black 1U
Diameter mounting holes:7 mm
Material thickness:1 mm
Mounting height:Approx. 4.5 cm (1 U)
Housing design:1 U
Dimensions:Width: 48,3 cm
Height: 4,45 cm
Weight:300 g
ROADINGER Swivel Castor RD-100 100mm blue
Color:Blue
Dimensions:Diameter: Ø 10 cm
ROADINGER Swivel Castor RD-100B 100mm blue with brake
Color:Blue
Dimensions:Diameter: Ø 10 cm
PSSO XLR cable 3pin 1m bk Neutrik
Cable construction:2 x 0,22 mm² Audio cable
Cable length:1 m
Plug A:1 x 3-pin XLR (M)
Plug B:1 x 3-pin XLR (F)
Use of brands:NEUTRIK
Color:Black
Weight:110 g
PSSO Speaker cable Speakon 2x2.5 1.5m bk
Cable construction:2 x 2,5 mm² Loudspeaker cable
Cable length:1,5 m
Plug A:1 x 2-pin SpeakON (M)
Plug B:1 x 2-pin SpeakON (M)
Use of brands:NEUTRIK
Color:Black
Weight:190 g
PSSO Speaker cable Speakon 2x2.5 10m bk
Cable construction:2 x 2,5 mm² Loudspeaker cable
Cable length:10 m
Plug A:1 x 2-pin SpeakON (M)
Plug B:1 x 2-pin SpeakON (M)
Use of brands:NEUTRIK
Color:Black
Weight:1 kg
OMNITRONIC PAS-215 MK3 Cover
Weight:640 g
OMNITRONIC PAS-181 MK3 Cover
Weight:1,08 kg
Read, write and discuss reviews... more
Customer evaluation for "OMNITRONIC PAS MK3 Band Set"
Write an evaluation

The fields marked with * are required.
