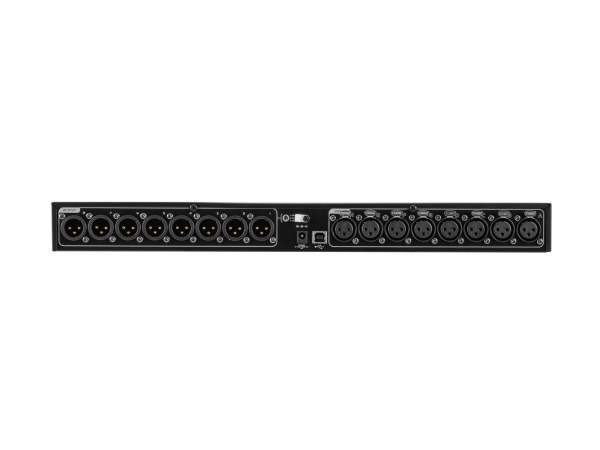

OMNITRONIC DXO-88E Digital Controller

OMNITRONIC DXO-88E Digital Controller
449.00€ *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays (**)

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-10356343
  • 4026397483260
Digital stereo active crossover with 8 inputs and 8 outputs, incl. software Flexible routing... more
Product information "OMNITRONIC DXO-88E Digital Controller"

Digital stereo active crossover with 8 inputs and 8 outputs, incl. software

  • Flexible routing configurations for all standard mono and stereo output operating modes
  • 8 analog inputs and 8 analog outputs (XLR)
  • Active frequency filter types (Bessel, Butterworth and Linkwitz-Riley) with slopes up to 24 dB/octave split up the audio signal into different frequency bands
  • Incl. software editor (for PC and Mac) for remote control via computer through USB interface: store, transfer, and manage your presets
  • Up to 30 user presets storable in the device via software
  • 5 menu languages selectable (German, English, French, Spanish, Dutch)
  • Alphanumeric LCD screen with 2 lines of 16 characters each
  • Input sensitivity digitally adjustable
  • Inputs and outputs with 4-digit LED level meter as well as clip and limit LED indicator
  • Mute switch with LED indicator per output
  • 7-band parametric EQ per output
  • Up to 7 ms signal delay adjustable for the outputs
  • Output limiter with adjustable limits and automatic attack and release settings as overload protection for your amplifying system
  • Switchable phase
  • Lock function for protecting the program settings
  • Rack installation, 1 U
  • Windows XP, Vista, 7, 10 and Mac OS X 10.5.8 and better
  • Digital signal processor
  • The device can be connected via USB to the PC in connection with DXO Software
    The firmware can be updated via the PC connection
  • (19") 48.3 cm rack installation 1 U

Related links to "OMNITRONIC DXO-88E Digital Controller"
Specifications "OMNITRONIC DXO-88E Digital Controller"
Power supply:100-240 V AC, 50/60 Hz
6 V DC 800 mA
Power connection:Mains input Coaxial power connector (M) Power supply cord with AC adapter (provided)
Frequency range:10 - 22000 Hz
THD:<0,005 % at 1 kHz
DSP:Digital signal processor
Crossover frequency:20-20000 Hz
Impedance:Input 10 kOhm
Output 50 Ohm
Gain:Output: -50 dB to +12 dB
Filter:Linkwitz-Riley; Butterworth; Bessel; 6db/oct; 12db/oct; 18db/oct; 24db/oct
Delay:0 - 5 ms
Dynamic range:Input: 114 dB
Output: 110 dB
Sample rate:48 kHz
Connections:Input: 8 x line via 3-pin XLR
Output: 8 x line via 3-pin XLR
Max. level:Input: +22 dBu
Output: +9 dBu
USB port:Typ B
PC connect:DXO Software via USB, firmware can be updated
Housing design:(19") 48.3 cm rack installation 1 U
Dimensions:Width: 48,3 cm
Depth: 12,8 cm
Height: 4,45 cm
Weight:1,80 kg
