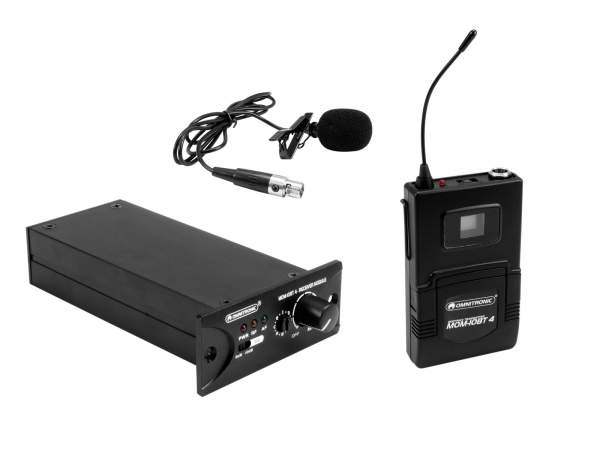

OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Lavalier microphone

OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Lavalier microphone
This product is currently not available.
99.00€ *

Prices incl. VAT plus shipping costs

Delivery time 2 Workdays

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-20000620
OMNITRONIC MOM-10BT4 Receiver Module Receiver module for UHF frequencies (microphone + audio... more
Product information "OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Lavalier microphone"


OMNITRONIC MOM-10BT4 Receiver Module

Receiver module for UHF frequencies (microphone + audio link signal)

  • For retrofitting the MOM-10BT4 modular PA system
  • Up to 4 receiving modules can be retrofitted
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • Volume control
  • LEDs for power, carrier and audio signals
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Use a operating range up to 30m with line of sight

OMNITRONIC MOM-10BT4 Bodypack Transmitter

Bodypack transmitter with 16 UHF frequencies (823-832 & 863-865 MHz)

  • Matching the MOM-10BT4 receiver module
  • 16 selectable UHF frequencies (823-832 and 863-865 MHz)
  • LCD for battery capacity and transmission channel
  • Sensitivity adjustable
  • Transmitting power 5 mW/10 mW, switchable
  • LED battery indicator
  • Belt clip
  • Headset microphone and lavalier microphone available as accessories
  • License-free and approved in large parts of the EU (please check Duplex Gap on a country-by-country basis)
  • Use a operating range up to 30m with line of sight

OMNITRONIC MOM-10BT4 Lavalier Microphone

Black, inconspicuous tie-clip microphone

  • Matching the MOM-10BT4 bodypack transmitter
  • For attaching to the user's tie, shirt or collar
  • Provides high-quality voice pickup for public speaking, theater, or business presentations
  • Delivery includes foam windscreen
  • Low weight
  • Polar pattern: Cardioid


Related links to "OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Lavalier microphone"
Specifications "OMNITRONIC Set MOM-10BT4 Receiver module + Bodypack transmitter + Lavalier microphone"
Weight:210 g
OMNITRONIC MOM-10BT4 Receiver Module
Type:Receiver
Power supply:12 V DC 150 mA
Frequency range:50 - 15000 Hz
S/N ratio:>80 dB
THD:<0,1 % at 1 kHz
Sensitivity:-95 dB
Control elements:Frequency selector switch, level control
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:16 Switchable frequencys
Frequency stability:± 0,01 %
Range:30 m with line of sight
Dimensions:Width: 7,1 cm
Depth: 13,9 cm
Height: 3 cm
Weight:90 g
OMNITRONIC MOM-10BT4 Bodypack Transmitter
Type:Pocket transmitter
Power supply:3 V DC
Power connection:Battery/battery pack
Battery:2 x Mignon (AA) (not included)
Connector type:Mini XLR (M) 3-pin
Frequency band:UHF 823 - 832 MHz; UHF 863 - 865 MHz
Frequency selection:16 Switchable frequencys
RF power output:10 mW
Frequency stability:± 0,01 %
Range:30 m with line of sight
Switch:On/off switch
Material:Plastic
Dimensions:Width: 6,6 cm
Depth: 2,2 cm
Height: 10,8 cm
Weight:100 g
OMNITRONIC MOM-10BT4 Lavalier Microphone
Type:Lavalier microphone
Power supply:1,5-10 V
Power connection:Mains input via Mini XLR (F) 3-pin
Capsule type:Condenser
Polar pattern:Cardioid
Frequency range:50 - 20000 Hz
Sensitivity:-37 dB
Max. SPL:120 dB
Color:Black
Weight:20 g
