FUTURELIGHT Color Wave LED Moving Bar

This product is currently not available.
689.00€ *

Prices incl. VAT plus shipping costs

Delivery time 2 Workdays

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-51839005
  • 4026397513141
Moving Head with two tiltable LED bars and colorful beams TILT movement for each LED bar... more
Product information "FUTURELIGHT Color Wave LED Moving Bar"

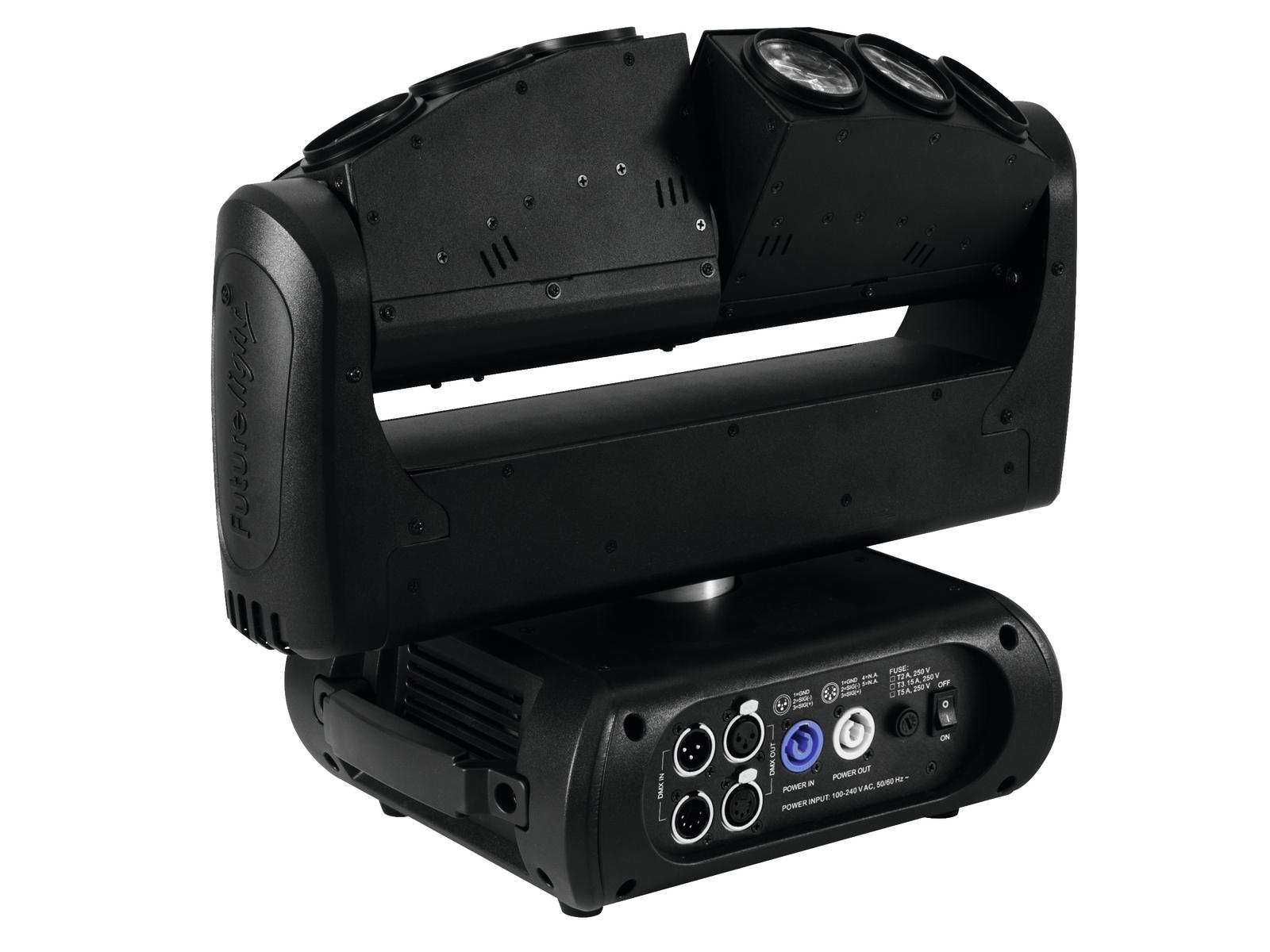

Moving Head with two tiltable LED bars and colorful beams

  • TILT movement for each LED bar separately and steplessly adjustable
  • Equipped with six CREE 10 W quadcolor LEDs with RGBW colors
  • Each LED can be controlled individually
  • Narrow illumination angle
  • Functions: built-in programs, shutter sequences, color presets for each LED independently controllable, countless RGBW colors, dimmer, strobe effect with variable speed, Master/Slave operation
  • Automatic position correction
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • PAN angle switchable between 540° and 630°
  • Random strobe effect
  • DMX-controlled operation or stand-alone operation with Master/Slave function
  • Control board with graphic LCD and foil-keyboard for adjusting the DMX-starting address, PAN/TILT reverse, reset
  • The scenes can be modified via the Control Board or via an external controller and loaded into the memory
  • Number of scenes can be changed individually
  • Software upload by optional accessories via DMX link
  • Switch-mode power supply for operation between 100 and 240 Volts
  • Power connection via Neutrik PowerCon jack and included power cable
  • Feed-through output allows to power up to 8 devices
  • DMX control via every standard DMX controller
  • LED: 6 x high-power 10 W 4in1 QCL RGBW
  • Can be operated in 18; 17 CH mode
  • The device is cooled by temperature-controlled fan
  • Controlling by RDM; DMX; Stand-alone; W-DMX by wireless solution built-in; Sound to light via Microphone
  • Is in EUROLITE LED PC-Control 512 software already preprogrammed
  • Effect: Fan effect


Related links to "FUTURELIGHT Color Wave LED Moving Bar"
Specifications "FUTURELIGHT Color Wave LED Moving Bar"
Power supply:100-240 V AC, 50/60 Hz
Power consumption:120 W
IP classification:IP20
Power connection:Mains input via PowerCON (blue), mounting version power supply cord with safety plug (provided)
Power output:1 x PowerCON (gray), mounting version
Lamp type:LED lamp
LED:6 x 10 W high-power 4in1 QCL RGBW
Max. TILT movement:Exact positioning (16 bit resolution) 240° Auto position correction (feedback)
Max. PAN movement:Exact positioning (16 bit resolution) 540° Positioning switchable to 630° Auto position correction (feedback)
Flash rate:0 - 20 Hz
DMX channels:18; 17
DMX input:1 x 3-pin XLR (M) mounting version
1 x 5-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
1 x 5-pin XLR (F) mounting version
Cooling:Temperature-controlled fan
Control:RDM; DMX; stand-alone; Sound to light via Microphone; LED PC-Control 512
Beam angle:2,5°
Beam angle (1/2 peak):2,5°
Illuminance in Lux (lx):Red (R) 3m: 1713 lx, 6m: 655 lx
Green (G) 3m: 2074 lx, 6m: 868 lx
Blue (B) 3m: 861 lx, 6m: 217 lx
Cold white (CW) 3m: 4037 lx, 6m: 452 lx
Housing color:Black
Dimensions:Width: 46,8 cm
Depth: 25 cm
Height: 32,5 cm
Weight:10,30 kg
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
