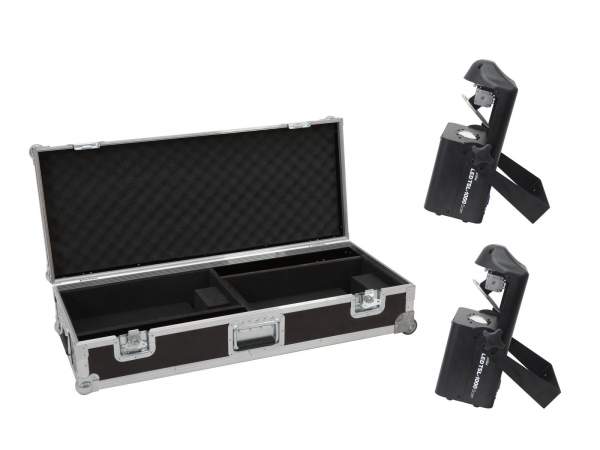

EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function

EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function
This product is currently not available.
1,249.00€ *

Prices incl. VAT plus shipping costs

Delivery time 2 Workdays

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-20000879
  • 4026397694857
EUROLITE LED TSL-1000 Scan Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel... more
Product information "EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function"


EUROLITE LED TSL-1000 Scan

Scanner with 100 W LED, rotating gobos, 3-facet prism, color wheel and motorized focus

  • One high-power 100 W COB LED in cold white
  • Positioning within 160° PAN and 50° TILT
  • Exact positioning via 16 bit PAN/TILT movement resolution
  • Auto, music, master/slave and DMX mode
  • Built-in auto and music show programs
  • 3-facet prism
  • Gobos interchangable
  • Strobe effect with adjustable speed
  • Sound-control via built-in microphone; sensitivity adjustable
  • Motorized focus
  • Electronic dimmer
  • Lightbeam with 20° radiation angle
  • Control board with OLED display and four operating buttons for adjusting the DMX starting address, PAN/TILT reverse
  • Switch-mode power supply for operation between 100 and 240 volts
  • P-Con terminals for power linking up to 8 units
  • Additional rubber feet when the device shall be positioned on the floor
  • LED: 1 x COB (chip-on-board) 100 W cold white (CW)
  • Color wheel 8 dichroic filters plus open
    Rainbow effect with adjustable speed in both directions
  • Gobo wheel with rotating gobos, 7 gobos and open
    shake effect
  • Can be operated in 10; 15 CH mode
  • The device is cooled by cooling fan
  • Controlling by Stand-alone; DMX; Master/slave function; Sound to light via Microphone
  • Flicker-free projection
  • Effect: Gobo effect

ROADINGER Flightcase 2x LED TSL-1000 with trolley function

  • Transport aid: With wheels
  • Made in Europe


Related links to "EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function"
Specifications "EUROLITE Set 2x LED TSL-1000 Scan + Case with trolley function"
Weight:23,40 kg
EUROLITE LED TSL-1000 Scan
Power supply:100-240 V AC, 50/60 Hz
Power consumption:110 W
IP classification:IP20
Protection class:Class I
Power connection:Mains input P-Con (blue), mounting version power supply cord with safety plug (provided)
Power output:P-Con (gray), mounting version
Fuse:T 2 A Fuse replaceable
Lamp type:LED lamp
LED:1 x COB (chip-on-board) 100 W cold white (CW)
Color temperature:8000K
Max. TILT movement:Exact positioning (16 bit resolution) 50°
Max. PAN movement:Exact positioning (16 bit resolution) 160°
Flash rate:1 - 25 Hz
Equipment:Focus motor-driven; color wheel; gobo wheel with rotating gobos; Prism 3-fold
Color generation:Color wheel 8 dichroic filters plus open
Gobos:Gobo wheel with rotating gobos, 7 gobos and open
Shake effect
DMX channels:10; 15
DMX input:3-pin XLR (M) mounting version
DMX output:3-pin XLR (F) mounting version
Cooling:Cooling fan
Control:Stand-alone; DMX; Master/slave function; Sound to light via Microphone
Beam angle:20°
Beam angle (1/2 peak):20°
Illuminance in Lux (lx):Cold white (CW) 1m: 35679 lx, 3m: 4265 lx, 6m: 1055 lx
Housing color:Black
Display type:OLED display
Dimensions:Width: 25,1 cm
Depth: 14,1 cm
Height: 37,7 cm
Weight:5,80 kg
Noise classification:Class 2 (slight noise)
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
ROADINGER Flightcase 2x LED TSL-1000 with trolley function
Maximum load:25 kg
Transport aid:Castors
Material:Birch multiplex, 6,5 mm
Accessory compartment:44 cm x 7 cm x 13 cm
Device compartment:36 cm x 25,5 cm x 13 cm
Inside dimensions:86,5 cm x 32,5 cm x 13 cm
Weight:10,10 kg
