EUROLITE Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Wireless transmitter

EUROLITE Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Funksender
1,049.00€ *

Prices incl. VAT plus shipping costs

Ready to ship today,
Delivery time appr. 1-3 workdays (**)

Save your email address and stay informed about this article.

as soon as the item is back in stock
as soon as the price goes down
as soon as the article is available as a special offer
  • ST-20000267
  • Standard
4x LED Uplight with black soft bag and wireless DMX transmitter EUROLITE AKKU UP-1 QCL Flex... more
Product information "EUROLITE Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Wireless transmitter"

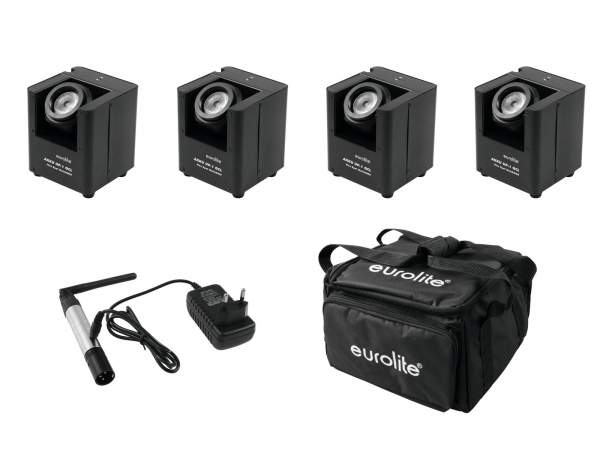

4x LED Uplight with black soft bag and wireless DMX transmitter

EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX

LED Uplight with 15 W 4in1 LED, tiltable head and QuickDMX transceiver

  • Compact and bright
  • Equipped with a 15 W QCL (quadcolor LED) in red, green, blue and white
  • Inclination angle of the LED head manually adjustable
  • Beam angle selectable via included lens 9°/15°
  • With integrated QuickDMX transceiver for wireless reception of DMX512 signals
  • Operation via included power supply unit or built-in rechargeable lithium-ion battery with up to 18 hours operating time
  • Integrated automatic charging of the battery with indicator
  • Functions: static colors, stepless RGBW color mixture, internal programs, dimmer, strobe effect with variable speed
  • Dimmer speed (step response) adjustable
  • Adjustable microphone sensitivity
  • Addressing via control panel with 4-digit LED display
  • Charger included in delivery
  • Switch-mode power supply for operation between 100 and 240 volts
  • LED: 1 x high-power 15 W 4in1 QCL RGBW (homogenous color mix)
  • Can be operated in 3; 4; 6; 8; 10 CH mode
  • The device is cooled by passive convection
  • Controlling by DMX; Stand-alone; QuickDMX built-in; Sound to light via Microphone; IR remote control included
  • Is in Light J Software; EUROLITE LED PC-Control 512 software already preprogrammed
  • Flicker-free projection
  • For application areas such as: Small lender; Wedding/gala

EUROLITE SB-4 Soft Bag L

Black soft bag for up to 4 devices, 320 x 320 x 200 mm

  • Practical transport bag offers enough space for several lighting effects and accessories
  • Large interior, four times divisible and adaptable with foam dividers and pads
  • Suitable e.g. for 4 x AKKU UP-4 Spot, 4 x TL-3 TCL Trusslight (41700500) or 3 x AKKU UP-4 Spot QuickDMX (41700540)
  • Interior upholstery helps securing and safeguarding the fixtures during transportation
  • External pocket stores accessories like cables, clamps, lamps and tape
  • Made of easy-care nylon
  • Carrying handles

EUROLITE QuickDMX Wireless Transmitter

Compact wireless DMX transmitter 2.4 GHz

  • User-friendly 3-pin XLR plug (male) with swivel antenna
  • Wireless DMX eliminates extensive cabling between DMX controller and the DMX-controlled units in lighting installations
  • Due to GFSK modulation with 78 channels, interference-free operation also alongside other QuickDMX transmitters and wireless devices in the 2.4 GHz band (e.g. Wi-Fi and Bluetooth)
  • Simultaneous operation of up to 6 transmitters, thus control of 3072 DMX channels (6 DMX universes) possible
  • 1 to 512 QuickDMX receivers can be controlled by each transmitter
  • Plug & Play: quick and easy setup with one operating button for connecting/disconnecting QuickDMX receivers
  • LED indication for functions
  • Transceiver, to be used as transmitter or receiver
  • Powered via included PSU
  • 2.4 GHz ISM band - license-free worldwide
  • Can transmit up to 512 DMX channels
  • Controlling by QuickDMX built-in; DMX
  • Use a operating range up to 400m


Related links to "EUROLITE Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Wireless transmitter"
Specifications "EUROLITE Set 4x AKKU UP-1 + SB-4 Soft-Bag + QuickDMX Wireless transmitter"
Weight:9,51 kg
EUROLITE AKKU UP-1 QCL Flex Spot QuickDMX
Power consumption:15 W
IP classification:IP20
Protection class:Class III
Power connection:Battery/battery pack
Mains input via Coaxial power connector (M) power supply cord with Euro plug (provided)
Battery pack type:1 x lithium ion 7,4 V, 8800 mAh, 65,12 Wh
Battery pack:Battery operation up to 18h depending on program used
Recharging time 6h
Lamp type:LED lamp
LED:1 x 15 W high-power 4in1 QCL RGBW (homogenous color mix)
DMX channels:3; 4; 6; 8; 10
DMX input:1 x 3-pin XLR (M) mounting version
DMX output:1 x 3-pin XLR (F) mounting version
Cooling:Passive convection cooling
Control:DMX; stand-alone; QuickDMX; Sound to light via Microphone; IR remote control; Light´J; LED PC-Control 512; Light Captain
Beam angle:
Beam angle (1/2 peak):
15°
Beam angle (1/10 peak):18°
30°
Housing color:Black
Carrier frequency:2,4 GHz
Dimensions:Width: 12 cm
Depth: 12 cm
Height: 14,2 cm
Weight:2,21 kg
Noise classification:Class 0 (no noise at all)
External mains adapter
Power supply:100-240 V AC, 50/60 Hz
8,4 V 3 A
Remote control
Battery:1 x Button cell 3.0 V CR2032 lithium manganese built-in
Legal specifications
Special product:Not designed for household room illumination
Intended use:Show effect lighting
EUROLITE SB-4 Soft Bag L
Maximum load:25 kg
Carrying strap:2 pc/pcs
Material:Nylon
Color:Black, water repellent
Compartment dimensions:15 cm x 15 cm x 20 cm
Inside dimensions:31 cm x 34 cm x 20 cm
Dimensions:Width: 32 cm
Depth: 41 cm
Height: 20 cm
Weight:520 g
EUROLITE QuickDMX Wireless Transmitter
Power supply:100-240 V AC, 50/60 Hz
5 V DC 1 A
IP classification:IP20
Power connection:Mains input via Coaxial power connector (M) power supply cord with AC adapter (provided)
DMX channels:Output 512
DMX input:1 x 3-pin XLR (M)
Control:QuickDMX; DMX; plug and play
Carrier frequency:2,4 GHz
Modulation:GFSK
Parallel mode:Max. 6 transmitter
Range:Range up to 400m
Color:Silver
Dimensions:Length: 21,2 cm
Diameter: Ø 1,8 cm
Weight:150 g
