- Order number: ST-51930426
- EAN 4026397659115
LED bar with 12 x W RGBW LED, pixel control and IR remote controlThe EUROLITE LED PIX-12 QCL bar... more

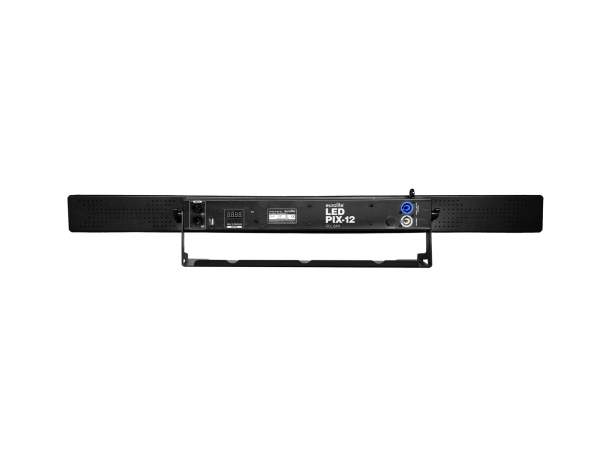

Product information "EUROLITE LED PIX-12 QCL Bar"
LED bar with 12 x W RGBW LED, pixel control and IR remote controlThe EUROLITE LED PIX-12 QCL bar features 12 powerful 4 W LEDs (4in1) in red, green, blue and white with a beam angle of 18°. It is suitable for professional applications, for example on show or theater stages. The LED light bar is based on a stepless RGBW color mixing. The functions available are color change, color fade, dimmer and strobe effects. It is worth mentioning that you can control each LED individually and select 18 colors directly. Furthermore, there are five integrated show programs in auto and music mode. Addressing and settings can be made via the control unit with 4-digit LED display.You can control the LED PIX-12 QCL either with the included infrared remote control, via DMX , QuickDMX via USB (optional) or by music control via the built-in microphone, whose sensitivity can be adjusted on the control board. The P-Con power connectors allow you to connect up to eight devices in a row.
LED light bar with 12 x 4 W RGBW LED, pixel control and IR remote control
- 12 high-power RGBW LEDs (4in1) with 18° beam angle
- Each LED can be controlled individually
- 5 built-in auto and music show programs
- Direct color selection for 18 preset colors
- Stepless RGBW color blend, color change, color fade, dimmer and strobe effect
- Addressing and setting via control panel with 4-digit LED display
- Convenient wireless control via included IR remote control EUROLITE IR-7
- Swivel mounting bracket
- Supports QuickDMX - the wireless DMX system from Eurolite
- Built-in phantom-powered USB port for QuickDMX receivers (accessories)
- P-Con terminals for power linking up to 8 units
- LED: 12 x high-power 4in1 QCL RGBW (homogenous color mix)
- Can be operated in 3; 4; 15; 52; 2 CH mode
- The device is cooled by cooling fan
- Controlling by Stand-alone; IR remote control; DMX; Sound to light via Microphone; QuickDMX via USB (optional); Master/slave function
- Is in EUROLITE LED PC-Control 512 software; EASY SHOW; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; LED EASY OPERATOR DELUXE already preprogrammed
Related links to "EUROLITE LED PIX-12 QCL Bar"
Specifications "EUROLITE LED PIX-12 QCL Bar"
|Power supply:||100-240 V AC, 50/60 Hz|
|Power consumption:||45 W|
|Protection class:||Class I|
|Lamp type:||LED lamp|
|LED:||12 x high-power 4in1 QCL RGBW (homogenous color mix)|
|DMX channels:||3; 4; 15; 52; 2|
|DMX input:||3-pin XLR (M) mounting version|
|DMX output:||1 x 3-pin XLR (F) mounting version|
|Control:||Stand-alone; IR remote control; DMX; Sound to light via Microphone; Master/slave function; LED PC-Control 512; EASY SHOW 1; LED EASY OPERATOR 4x4; LED EASY OPERATOR 4x6; QuickDMX via USB (optional); LED EASY OPERATOR DELUXE; W-DMX by wireless solution via USB (optional); CRMX by LumenRadio via USB (optional); Light Captain; Sound to light|
|Beam angle (1/2 peak):||18°|
|Beam angle (1/10 peak):||36°|
|Attachment system:||Mounting bracket|
|Dimensions:||Length: 1 m|
Depth: 16,5 cm
Height: 11,1 cm
|Special product:||Not designed for household room illumination|
|Intended use:||Show effect lighting|
